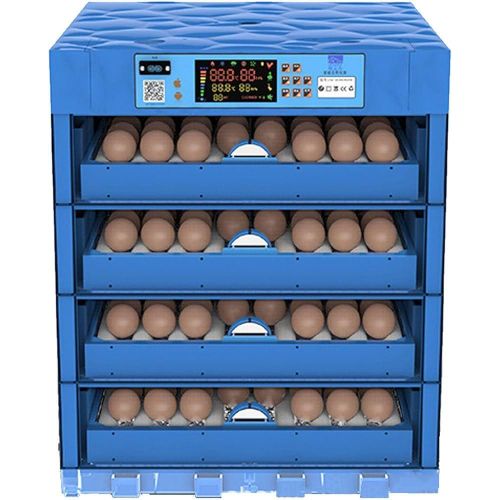

204-Egg Fully Automatic Digital Incubator

A 204-Egg Fully Automatic Digital Incubator is a highly efficient, multi-tier poultry hatcher tailored for small-to-medium commercial operations, farm setups, and breeding enthusiasts. It features a modern, compact multi-layer drawer system that takes care of temperature, humidity, and egg rotation automatically to maximize hatch rates (often up to 98%).

📋 Key Technical Specifications

• Structural Layers: 3-Tier independent drawer-style rolling trays

• Power Supply Mode: Dual Power (AC/DC) Capability

  • Main Power Line: AC 110V / 220V (Standard grid electricity)

  • Emergency Backup: DC 12V terminal ports (Allows you to connect straight to a 12V car/solar battery during power outages without needing a costly power inverter)

• Energy Consumption Rate: 90W to 200W maximum draw

• Control Precision: Temperature accuracy within $\pm0.1^\circ\text{C}$; Humidity accuracy within $\pm3\%\text{ RH}$

• Average Physical Dimensions: Approx. $55 \times 54 \times 60\text{ cm}$

• Net Weight (Empty): Approx. 18 kg to 20 kg (built from rigid, high-density insulated PVC casing)

🛠️ Core Functional & Automated Features

• Smart Roller Turning System: The incubator avoids static egg configurations by implementing automated roller tracks. The machine automatically rolls the eggs gently every 2 hours to distribute heat evenly and prevent the embryo from sticking to the shell membranes.

• Self-Water Replenishing & Ultrasonic Humidification: Built with an external auto-water injection port and passive float valve system. You simply hook up external water bottles upside down to the side ports, and the machine draws its own fluid to maintain constant, accurate humidity inside without you having to crack open the door and bleed out heat.

• 3-in-1 Design (Setter, Hatcher, and Brooder): You do not need secondary gear. You can use it as a standard incubator, pull out the rollers during the final 3 days of the cycle to let chicks safely pip on the bottom mesh net (hatcher), and leave them inside safely under heat to dry out completely (brooder).

• Multi-Parameter Digital Dashboard: The external computer interface continuously broadcasts:

  • Real-time internal temperature & moisture percentages

  • Total days elapsed in the current incubation run

  • A digital countdown timer ticking down to the next automatic egg roll

  • Integrated alarms to notify you if climate metrics drift past safety limits

Pro Incubation Practice (The Final 3 Days): When you reach day 18 of a chicken egg cycle, stop the egg rotation completely. Unplug and remove the horizontal rolling tracks from the drawer, lay down the uniform plastic brood net floor, lower the climate target slightly to around 37.6, and ramp up your humidity lines to soften the eggshells for clean hatching.
