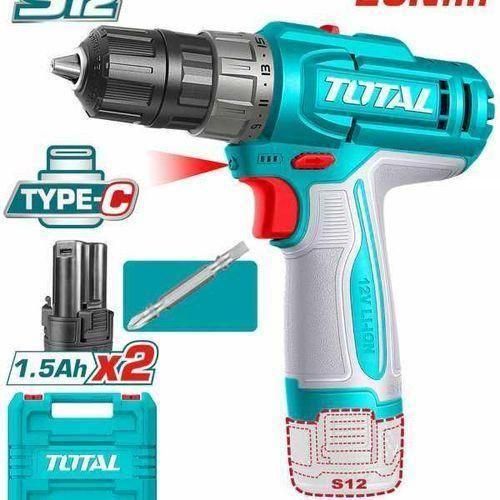

Total TDLI12206 12V Cordless Drill

The TOTAL TDLI12206 is a versatile step up in TOTAL’s 12V cordless lineup. While it shares the same compact form factor as the TDLI12456, the TDLI12206 adds a highly requested mechanical 2-speed gear system, giving you better control when jumping between low-speed screw driving and high-speed drilling.

Key Technical Specifications

• Voltage: 12V

• Max Torque Force: 20 Nm

• No-Load Speed: Dual-gear control:

  • Gear 1 (Low Speed / High Torque): 0 – 400 RPM

  • Gear 2 (High Speed / Drilling): 0 – 1,500 RPM

• Torque/Clutch Settings: 15 + 1 Settings (15 driving stages + 1 locked direct drilling mode)

• Chuck Capacity: 0.8 mm – 10 mm ($1/32″ \text{ to } 3/8″$) keyless plastic chuck

• Battery Inclusions: Usually bundles with 2x 1.5 Ah Lithium-Ion battery packs (Model: TBLI12153).

Core Practical Design Highlights

• Mechanical 2-Speed Toggle: A sliding physical switch on top of the drill housing lets you lock the internal transmission into Low Gear (maximizing torque so you don’t strip screws) or High Gear (maximizing speed up to 1,500 RPM for boring holes rapidly through timber).

• Direct USB Type-C Battery Charging: The bundled batteries feature a built-in USB-C port right on their casings. This lets you recharge the batteries directly via phone chargers, laptop bricks, or power banks without needing to lug around a specialized dock. (Note: In most market configurations, a USB-C cable is supplied but a wall adapter charger block is sold separately).

• Integrated Workspace Illumination: An onboard LED light activates when the trigger is squeezed, throwing targeted light right at the tip of the bit for high precision inside dark cabinets or closets.

Note on Model Variants: Depending on your local retailer, you might also run into the TIDLI12206 (with an “I” for Impact). The TIDLI version shares almost identical styling but incorporates an internal hammering mechanism yielding up to 22,500 Beats Per Minute (BPM) specifically to drill small holes into brick or light masonry masonry walls. The standard TDLI12206 is strictly for wood, metal, plastic, and screwdriving.
