12V DC booster pump

A **12V DC booster pump** is a compact, energy-efficient water pump designed to increase water pressure or circulate fluids in low-pressure setups. Because it runs on 12-volt direct current, it is highly popular for mobile, off-grid, and solar-powered applications.

 Surface “Solar” Booster Pumps (For Volumetric Transfer)

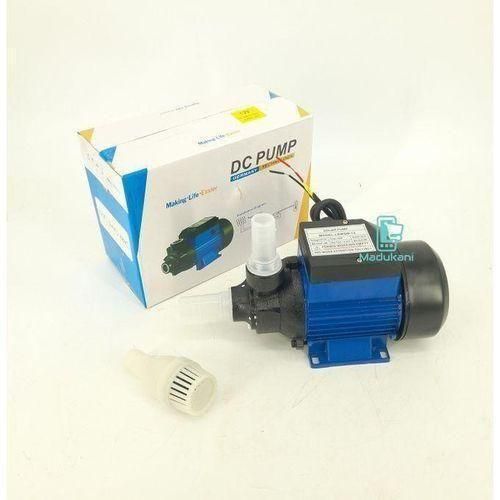

These look like mini versions of traditional home water pumps, often featuring a cast iron or aluminum motor body and a brass impeller.

* **Best Used For:** Transferring water from a ground-level tank to an elevated tank, small-scale garden irrigation, and low-voltage greenhouse water supply.
* **Average Specs:** * **Power:** 150W to 180W
* **Current Draw:** 12 to 15 Amps
* **Max Head (Lift):** 15 meters
* **Max Flow Rate:** ~1,500 to 2,000 Liters per Hour

* **Power Source Requirement:** Requires a heavy-duty power source due to the 15A draw. It runs best connected to a 12V deep-cycle battery backed by a minimum 200W solar panel setup, or a high-amperage 220V AC to 12V DC transformer.

### Key Advantages of 12V Systems

* **Safety:** Low voltage means there is an incredibly minimal risk of dangerous electrical shocks around water compared to standard 220V/110V mains pumps.
* **Direct Solar Compatibility:** They can run completely independent of the utility grid, making them perfect for remote cabins, livestock watering, or camping.
* **Portability:** They are highly compact, lightweight, and can plug right into a car battery or cigarette lighter adapter.

### Critical Tips Before  Installing

1. **Watch the Amperage:** A 12V 180W pump draws roughly 15 Amps. If you use thin, undersized wires over a long distance, the wires will overheat, voltage will drop, and the pump will lose significant power. Use thick-gauge marine or automotive wire.
2. **Dry Running:** If you choose a *peripheral surface pump*, never let it run without water passing through it, or the internal seals will burn out. *Diaphragm pumps*, on the other hand, can generally tolerate running dry for short periods without sustaining damage.
3. **Filter Your Inlet:** 12V pumps have tight internal tolerances. Always install a simple mesh strainer on the suction pipe to stop sand, debris, or sediment from locking up the impeller or clogging the diaphragm valves.
