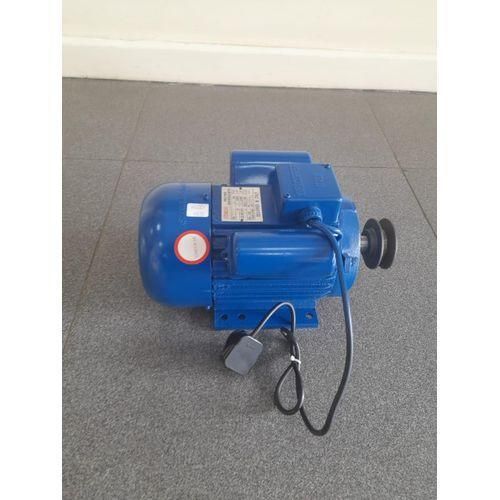

K-Max Italy 2HP Asynchronous Motor

⚡ The KMAX Italy 2HP Single-Phase Low-Speed Asynchronous Motor is specifically built to deliver steady, heavy-duty mechanical leverage. By prioritizing raw rotational crushing and pulling power over raw speed, this 4-pole machine motor operates efficiently under highly resistant startup loads.

📋 Key Technical Specifications

🛠️ Core Engineering & Structural Design

• Dual-Capacitor Design (Cap Start / Cap Run): Housed inside the dual metal protective bumps on top of the chassis frame are two individual capacitors. The heavy start capacitor delivers an extra electrical kick for maximum starting torque when the motor initiates a rotation under load. A separate run capacitor stays continuously active to balance power efficiency and minimize motor humming.

• 100% Pure Copper Coils: Unlike cheaper aluminum-core alternatives, KMAX uses full copper stator lines. Copper maintains physical and electrical integrity at high operating temps, significantly lowering the risk of winding blowouts during long production shifts.

• Total Fan Cooled Ventilation (TEFC): The exterior body is built with rigid longitudinal cooling fins. A rear shaft-driven fan pulls ambient air directly across these fins to maximize heat dissipation in dusty environments like mills or woodworking shops.

• Bi-Directional Internal Setup: The rotation direction of the output shaft can be swapped. By opening the top terminal box and flipping the layout configuration of the copper jumper links, the motor can safely drive machinery in clockwise or counter-clockwise tracks.

🚜 Primary Applications

The low-speed, high-torque configuration of this KMAX motor is the standard choice for:

• Agricultural Tooling: Grain mixers, posho/maize hullers, larger chaff/fodder cutters, silage processors, and high-suction water pumps.

• Workshop Machinery: Heavy belt-conveyors, commercial paint/cement mixers, low-velocity meat grinders, and heavy metal fabrication machinery.
