Edon 500s Inverter Portable MMA Welding Machine
Original price was: KSh15,000.00.KSh12,499.00Current price is: KSh12,499.00.
| Feature | Typical Specification |
| Welding Process | MMA / Stick Welding (ARC) |
| Technology | IGBT Inverter |
| Input Voltage | 220V ± 10% (Single Phase) |
| Rated Output Current | ~140A – 180A (Sustained) |
| Peak Marketing Current | Up to 500A |
| Electrode Range | 1.6 mm – 4.0 mm (varies by unit) |
| Duty Cycle | ~60% at rated load |
| Weight | ~5 kg – 9 kg (varies by specific manufacturer batch) |
The Edon ARC-500S is a widely available inverter welding machine in the Kenyan market. It is important to note that while it is marketed as a “500A” welder, this is a peak marketing rating rather than the machine’s continuous operational output.
Key Specifications
| Feature | Typical Specification |
| Welding Process | MMA / Stick Welding (ARC) |
| Technology | IGBT Inverter |
| Input Voltage | 220V ± 10% (Single Phase) |
| Rated Output Current | ~140A – 180A (Sustained) |
| Peak Marketing Current | Up to 500A |
| Electrode Range | 1.6 mm – 4.0 mm (varies by unit) |
| Duty Cycle | ~60% at rated load |
| Weight | ~5 kg – 9 kg (varies by specific manufacturer batch) |
Important Reality Check
- Intended Use: These units are designed for Manual Metal Arc (MMA) welding. They are highly portable and use “Hot Start” or “Arc Force” features to make starting the weld easier, which is helpful for DIY enthusiasts and small workshop repairs.
-
Quality Variations: “Edon” is a brand name applied to various imported machines. You may see different weight and dimension specifications for the same model number on different websites. Always verify the physical unit with your dealer and ensure it comes with a local warranty.
-

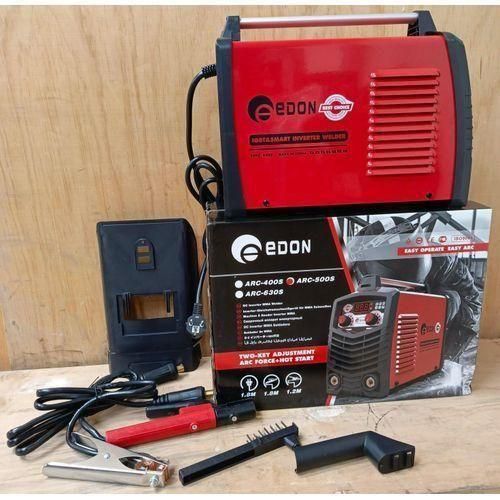

Accessories: These kits typically include an electrode holder, earth clamp, a simple face shield, and a wire brush. It is strongly recommended to purchase a proper auto-darkening welding helmet to protect your eyes, as the included basic masks offer minimal protection.
