Bill Counter Machine Medium
KSh10,500.00

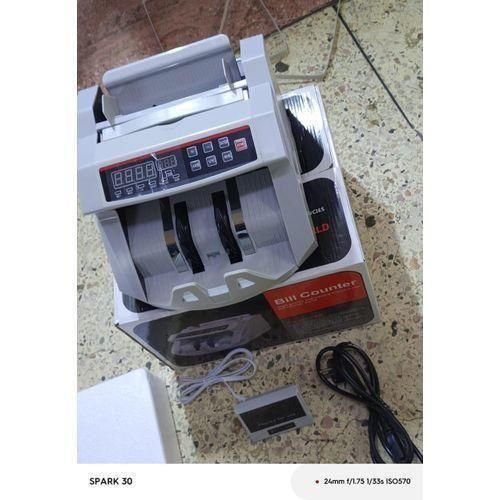

The technical specifications for the 2108 UV/MG Bill Counter shown in “bill counter.jpg” are detailed below:
Performance & Capacity
-
Counting Speed: $\ge 900 \text{ to } 1,000 \text{ notes/minute}$
-
Hopper Capacity (Input Tray): Up to 200–300 bills
-
Stacker Capacity (Output Blades): Up to 130–200 bills
-
Counting Range: $1 – 9,999 \text{ digits}$
-
Batch Range: $1 – 9,999 \text{ digits}$
Size Requirements for Banknotes
-
Length Range: $100\text{ mm} – 185\text{ mm}$
-
Width Range: $50\text{ mm} – 90\text{ mm}$
-
Note Thickness: $0.075\text{ mm} – 0.15\text{ mm}$
Electrical Specs & Consumption
-
Power Supply Source: AC $220\text{V} \pm 10\% \text{ (50Hz)}$ or AC $110\text{V} \pm 10\% \text{ (60Hz)}$
-
Power Consumption: $\le 70\text{W} – 80\text{W}$ under operational load
Dimensions & Weight
-
Net Machine Weight: Approximately $5.0\text{ kg} – 6.5\text{ kg } (10.6\text{ lbs} – 14.3\text{ lbs})$
-
Physical Footprint Size ($L \times W \times H$): Around $300\text{mm} \times 255\text{mm} \times 180\text{mm}$
Display Configurations
-
Main Counter Screen: Three-digit or Four-digit red LED numerical system
-
Batch Preset Screen: Three-digit or Four-digit red LED auxiliary matrix
-
External Monitor Screen: Separate plug-in LCD/LED panel for customer viewing
Core Specifications
-
Counting Speed: $\ge 1,000$ notes per minute, allowing rapid batch processing.
-
Hopper Capacity: Holds up to 200–300 loose bills in the back-loading tray.
-
Stacker Capacity: Securely catches up to 130–200 counted notes at the front.
-
Power Requirement: Operates on typical AC 220V (50Hz) or 110V (60Hz) electrical outlets.
-
Power Consumption: Energy-efficient operation drawing less than 70W–80W under load.
-
Net Weight: Approx. 5.5 kg to 5.7 kg (sturdy and slip-resistant on countertops).
Integrated Security & Anti-Counterfeit System
The model utilizes dual-layer detection technology that evaluates notes simultaneously as they pass through the roller track:
-
UV (Ultraviolet) Detection: Scans the paper substrate for glow reactivity under fluorescent lighting to identify low-grade, non-currency papers.
-
MG (Magnetic) Detection: Tests for the presence of authentic magnetic inks found on major international currencies (like USD, EUR, and local legal tender).
Key Operational Modes
-
Automatic Start/Stop: The machine uses proximity sensors to instantly trigger the rollers when a stack of bills is dropped into the hopper, stopping automatically when the tray clears.
-
Batching Mode (
BATCH): Allows you to preset a specific number (e.g., 10, 20, 50, 100). The machine will count up to that exact number and pause so you can band or strap the bundle. -
Adding Mode (
ADD): Continuously keeps a running total tally of all stacks processed across multiple consecutive runs. -
Error & Anomalous Sheet Protection: Programmed to trigger a full system halt and generate error codes if it intercepts a half-note, wrinkled chain-note, or double-notes (two bills stuck together feeding through as one).
